I opened the mini-split's owner guide expecting one sentence about cleaning a filter. There was a large mesh screen, a smaller insert and a set of instructions that did not treat them as the same thing. My plan to wash everything in the sink was already losing support.
The screen was easy to recognise in the drawing. The little insert took longer. I checked the indoor unit's model and the filter's own label instead of using a photograph of a similar-looking head.
Check the material before choosing the cleaning method
Source: Mitsubishi Electric Canada: MSZ-GS18NA owner instructions, cleaning
Mitsubishi Electric's MSZ-GS18NA instructions, for example, distinguish the washable main air filter from optional treatment filters. One optional microparticle filter must not be washed. The same cabinet can contain parts with different care requirements.
That made the owner's manual useful in a very specific way. I needed the page for my model and the insert actually fitted, not a general promise that mini-split filters are washable.
I also checked the inspection interval. Household dust, pets and operating hours give me reasons to look, but they do not change a non-washable material into a washable one. I put the correct part name in my maintenance reminder.
Keep the job within the owner instructions
Source: Daikin: different filter materials need different cleaning

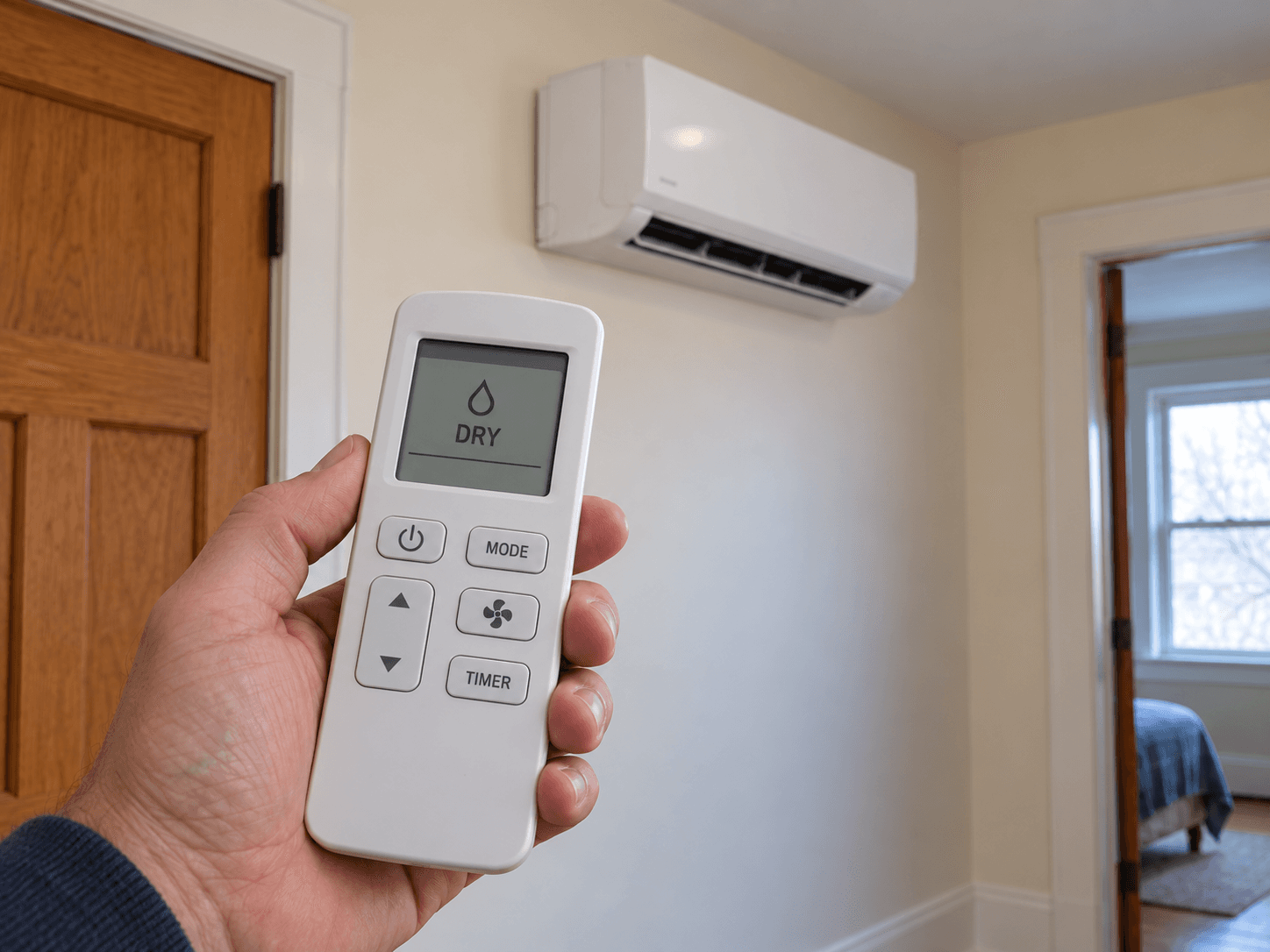

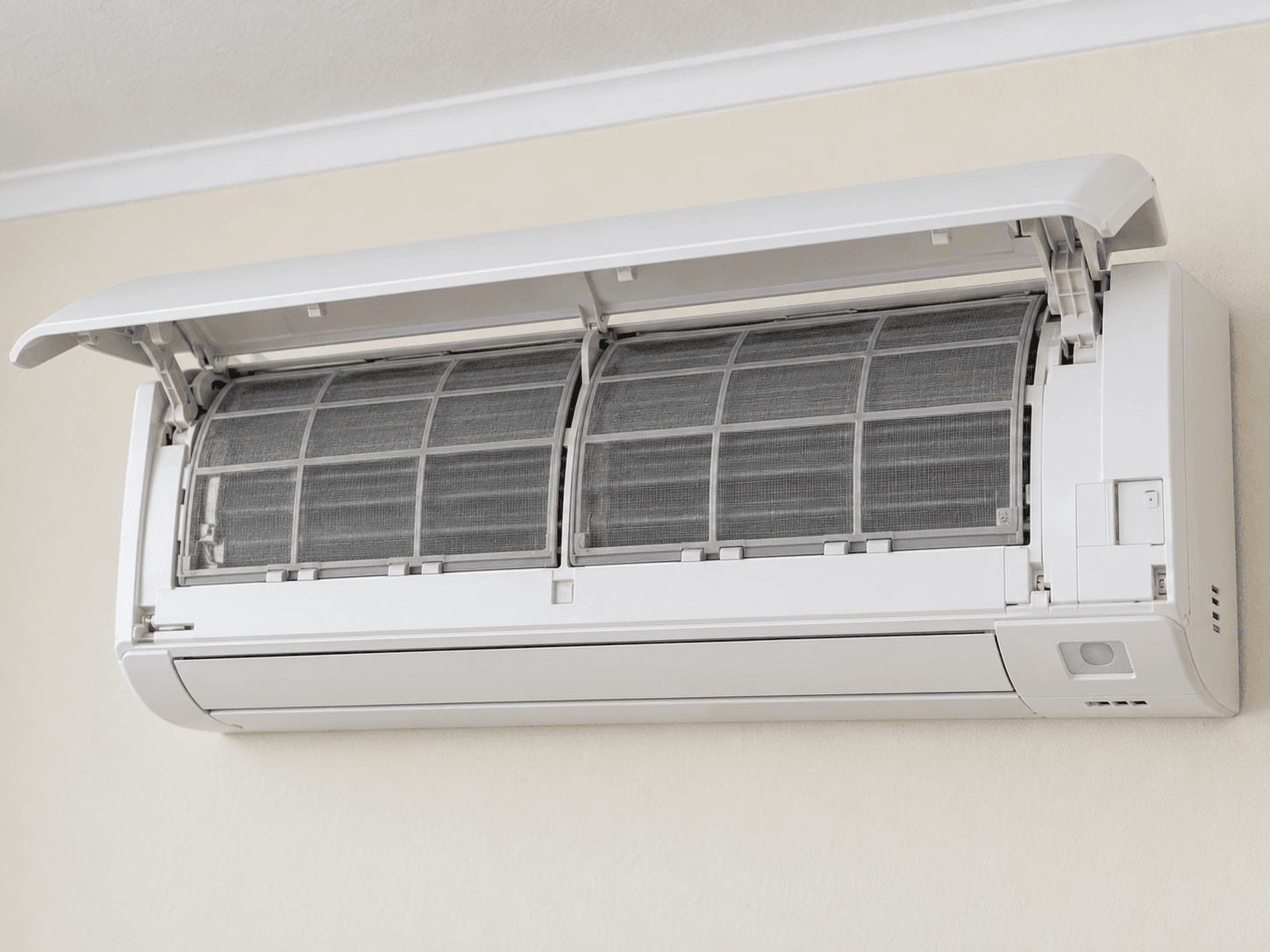

I stopped the unit with its normal control and followed the required power-isolation steps before opening the owner-access panel. If safe access or isolation is unclear, arranging service is the sensible next step. Balancing on furniture is not part of filter maintenance.

- Support and release the panel as shown; do not force hinges or tabs.
- Remove only the parts the owner procedure identifies.

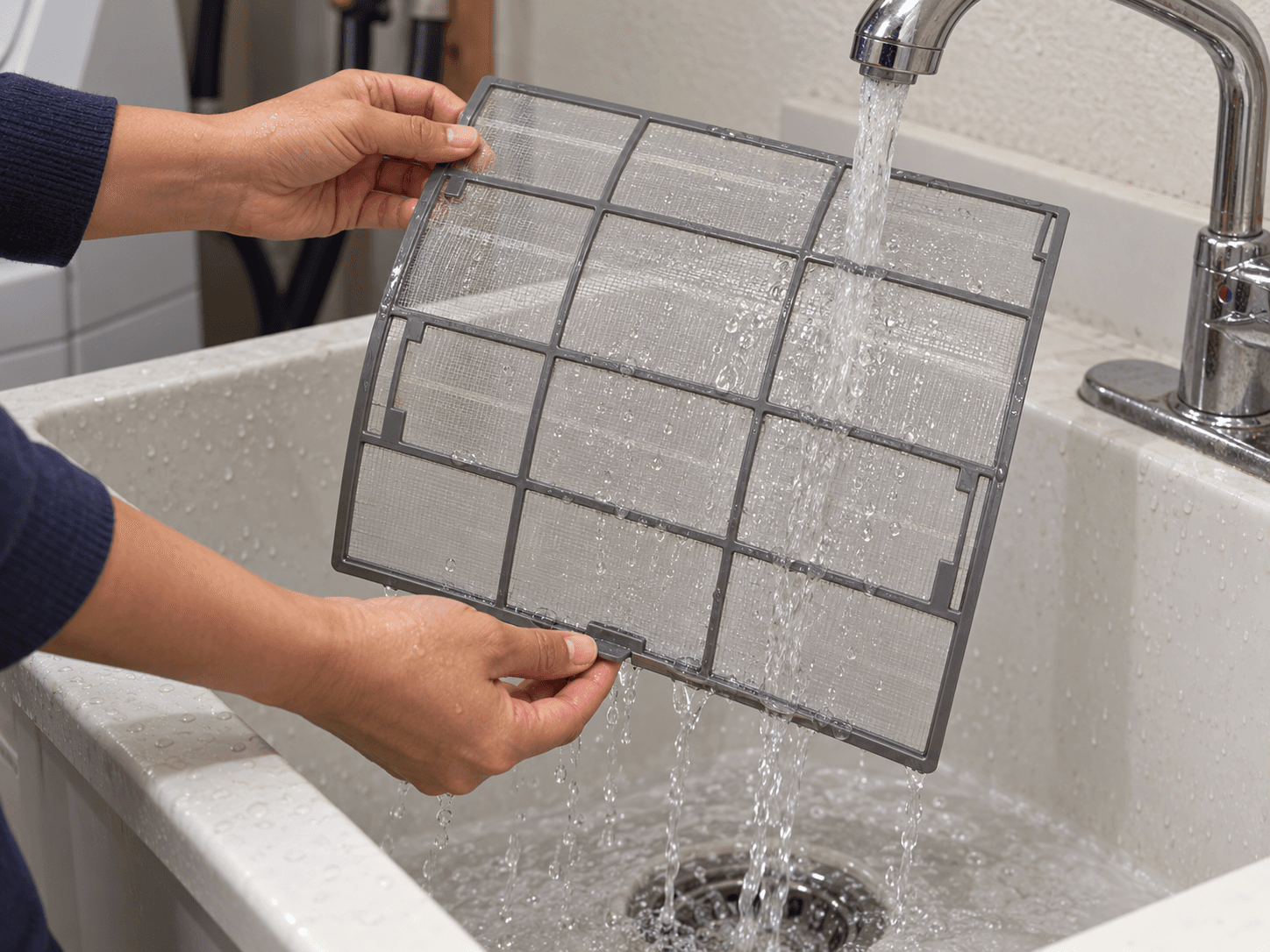

- Use the permitted vacuuming or washing method for each material.
- Let washed parts dry as directed before refitting them.
- Seat the filters and close the panel securely before restarting.
Daikin's filter guidance also separates washable screens from inserts that must not be washed. Its model-specific drying and refitting instructions matter as much as getting the visible dust off.
A clean screen does not make every problem a filter problem
I left the coil, fan wheel and electrical compartment alone. Spraying cleaner into the installed head would have turned a small owner task into a different job.
Water leaking into the room, persistent odour, damage or poor performance after correct care needs investigation. A replacement reminder is not an explanation for every symptom.
My finished job was less impressive than my original plan: the right parts cleaned the right way, dry and back in place. That was enough. The small insert had survived my enthusiasm.
